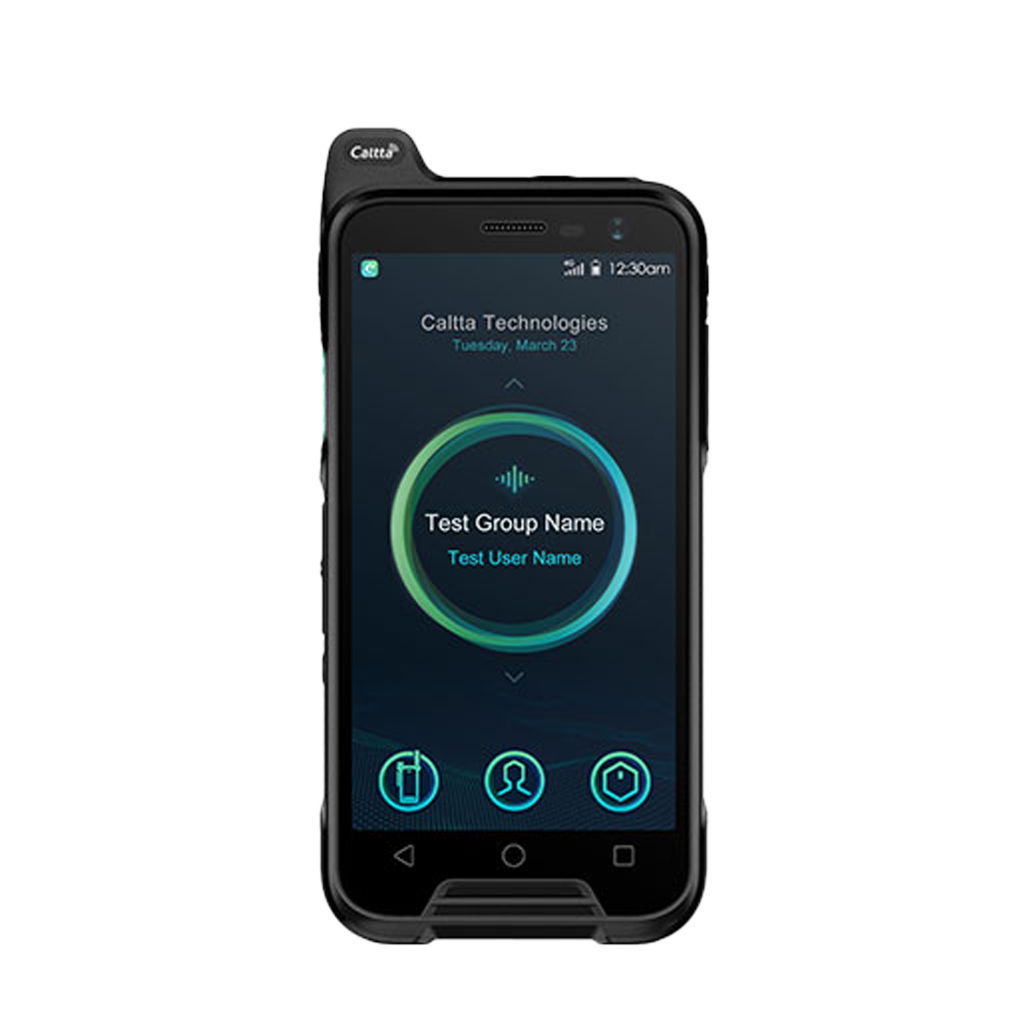

Caltta E720 Smart Radio
Based on an advanced smart chip platform, the Caltta eChat e720 supports 4G broadband data services and offers users high-quality industrial applications. Its high-quality front and rear cameras, block-type 4100 mAh replaceable radio battery, and compact dimensions despite its large screen have made it an indispensable choice for the energy sector.
Features of e720 eChat Smart Radio
Easy to Carry
With a lightweight design, e720 can be shoulder-mounted or hand-held, conducive to long-time carrying and work.
Outstanding Industrial Design
With a 4.7″ touchable screen and Android OS, e720 is easy to operate. The human-computer interaction is optimized for heavy-duty applications.
Loud and Clear
Professional sound cavity design, high-power loudspeaker, excellent audio encoder, and dual-MIC noise suppression ensure loudness and clarity from all backgrounds.
Long Standby Time
The 4100 mAh large-capacity battery fulfills the need of long-time work shifts.
High Reliability
IP68 and MIL-STD-810H rated, e720 is fully protected from dust and water and is ready to perform in all weather.
Full Bands
e720 POC network radio adopts a highly integrated smart chip and supports most cellular bands worldwide.
Open to Third-party App
Born to be a smart radio with Android OS, certificated by GMS(Google Play is supported), and compatible with third-party applications, making users’ work more efficient and convenient.
Extensive Functions
e720 supports Galileo/GPS/Glonass/BDS to provide dedicated users with precise location-based services. It supports lots of Android apps, and it connects with USB OTG devices to extend functions.
Dual SIM Dual Standby
With two SIM slots and dual standby technology, e720 works in two different networks simultaneously.
Specifications of e720 eChat Smart Radio
| General | |
| Network | Public LTE/WCDMA/GSM |
| Frequency | LTE: TDD: B38/B39/B40/B41 FDD: B1/B2/B3/B4/B5/B7/B8/B20/B26/B28A/B28B WCDMA: B1/B8 GSM: B3/B8 |
| Size (H x W x D) | 141.8 x 70 x 20mm ( without antenna) |
| Weight About | 260g |
| Screen | 4.7-inch LCD, 1280×720, support Glove Touch |
| Battery Capacity | 4100mAh, 3.7V, replaceable |
| Interface | Type-C (Data/ Audio/Charging) |
| Key | PTT, power, volume knob x 2, programmable key x 2, SOS |
| OS | Deeply customized Android 11 |
| Chipset | 8-core A53 Processor |
| Memory (RAM+ROM) | 4GB+64GB |
| Bluetooth | BT4.2 |
| WLAN | Wi-Fi 802.11b/g/n, 2.4G/5G, support Wi-Fi hotspot |
| NFC | Support 13.56M card reader |
| Location | Galileo/GPS/Glonass/BDS, AGPS |
| Speaker | Front professional diaphragm speaker, max 2.5W |
| MIC | Dual MIC with noise suppression |
| Sensor | Gravity, Gyroscope, Geomagnetic, Proximity, Light |
| OTG | Support, extendable for USB drive-free camera and other devices |
| Charging | Type-C, desktop charger (optional) |
| Vibration | Support |
| Card Slot | NANO SIMx2, TFx1 |
| VoL TE | Support |
| Environmental | |
| Operating Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
| ESD | IEC 61000-4-2 (level 3) ±6kV (Contact) ±8kV(Air) |
| Dust and Water Resistance | IP68 |
| Reliability | MIL – STD – 810H |
