Caltta PH600 Series DMR Handheld Radio
Born with a professional appearance, the PH6 series enables effective group communication, enables efficient team collaboration, and offers rich data applications, advanced features, and superior voice quality. It is an ideal choice for PTT communication.
- Caltta PH600
- Caltta PH660

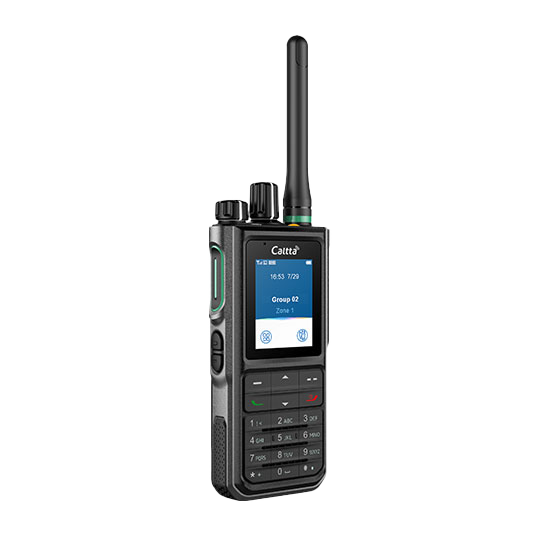

- Caltta PH690
Features of PH600 DMR Portable Radio
Compact Design
Only 270g (antenna and battery included) in weight and 100mm in height. Portable and easy to operate. The surface is designed with anti-slip texture, making it comfortable to hold and anti-slip even in wet environments.
Digital-and-analog Compatible
Digital-and-analog compatible, PH600 realizes the smooth evolution of the system. It also supports digital direct/repeater dual-time slots and automatic cross-site roaming.
IP68 Protection
IP68 rated, PH600 is resistant to water and dust, ensuring normal operation in extreme environments.
Full Encryption
Support 40bit basic encryption. 128/256bit AES encryption are optional. It also supports lone worker, alarm, man-down and other functions to protect users’ safety.
Large-capacity Battery
With the 2600mAh large-capacity battery and digital power reduction technology, PH600 can work for at least 20 hours in digital mode (5:5:90), meeting the needs of long work shifts.
Loud and Clear Voice
With a 2W speaker and optimized audio design, PH600 ensures clear communication even in a noisy environment.
Complete Services
In addition to basic DMR voice and data services, PH600 also supports many optional features such as GPS/BDS, Bluetooth, VOX, etc.
Military Standard
MIL-STD-810H rated, PH600 is resistant to dropping and shocks at various levels.
Specifications of PH600 DMR Portable Radio
General | |
Digital Protocol | ETSI TS102 361-1, -2, -3, -4(optional) |
Frequency | UHF1: 400-470MHz UHF3: 350-400MHz VHF: 136-174MHz |
Channel Capacity | 32 |
Zone Capacity | 2 |
Channel Spacing | 12.5KHz/20KHz/25KHz |
Frequency Stability | ±0.5ppm |
Operating Voltage | 7.4V |
Battery Capacity | 2600mAh (Standard) / 2000mAh (Optional) |
Battery Life | Analog: 16 Hours Digital: 20 Hours (5: 5: 90 working cycle, high power transmission) |
Size (H x W x D) | 100×54.5×37.5mm (without antenna) |
Weight | About 270g (With Antenna and Battery) |
Vocoder | AMBE++ |
| Bluetooth | BT2.1+EDR / 4.0 (optional) |
| Location | GPS (Optional) |
| Man down / Vibration | Support |
Encryption | Support 40bit Basic Encryption, 128/256bit Advanced Encryption is optional |
Receiver | |
Sensitivity (Analog Typical) | 0.18uV(12dB SINAD) |
Sensitivity (Digital Typical) | 0.18uV (5% BER) |
Adjacent Channel Selectivity | 60 dB@12.5KHz/70 dB@20/25KHz (TIA603A) |
| 60dB@12.5KHz /70 dB@20/25KHz ( ETSI ) | |
Intermodulation | 70 dB (TIA603D) |
65 dB (ETSI) | |
Spurious Rejection | 70 dB (TIA603D) |
70 dB (ETSI) | |
Blocking | 80dB(TIA603D) |
84dB(ETSI) | |
Co-channel Rejection | -12~0 dB @12.5KHz/-8~0 dB @20/25KHz |
Hum and Noise | -40 dB@12.5KHz /-43 dB@20KHz /-45 dB@25KHz |
Rated Audio Power | 0.5W |
Max Audio Power | 2.0W |
Rated Audio Distortion | ≤3% |
Audio Response | +1～-3dB (TIA603D) |
Conducted Spurious Emission | -57 dBm (TIA603D) |
Transmitter | |
Low Power Output | 1W |
High Power Output | 4W (UHF1&UHF3) / 5W (VHF) |
FM Modulation | 12.5KHz: 11K0F3E / 20KHz: 14K0F3E / 25KHz: 16K0F3E |
4FSK Digital Modulation | 12.5KHz Data Only: 7K60F1D&7K60FXD |
12.5KHz Voice Only: 7K60F1E&7K60FXE | |
12.5KHz Voice And Data: 7K60F1W | |
Conducted/Radiated Emission | -36dBm ≤1GHz ; -30dBm >1GHz |
Modulation Limiting | ±2.5KHz @12.5KHz /±4KHz @20KHz /±5.0KHz @25KHz |
FM Hum and Noise | -40 dB@12.5KHz /-43dB@20KHz /-45 dB@25KHz |
Adjacent Channel Power | 60 dB@12.5KHz /70 dB @20/25KHz |
Audio Distortion | ≤3% |
Audio Response | +1～-3dB(TIA603D) |
Environmental | |
Operating Temperature | -30℃ ~ +60℃ |
Storage Temperature | -40℃ ~ +85℃ |
ESD | IEC 61000-4-2 (level 4) ±8kV (Contact) ±15kV(Air) |
Dust and Water Resistance | IP68 |
Reliability | MIL-STD-810H |
GPS | |
Accuracy specs are for long-term tracking (95th percentile values>5satellites visible at nominal -130 dBm signal strength) | |
TTFF (Time To First Fix) – Cold Start | <60s |
TTFF (Time To First Fix) – Hot Start | <10s |
Horizontal Accuracy | <10m |
